ERZ-HPA-3300-4500-23-E

Q Band Power Amplifier

Description:

The ERZ-HPA-3300-4500-23 is a Q Band Amplifier providing up to 23 dBm and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
33,00 to 45,00
Psat (dBm):
23
Small Signal Gain (dB):
30,00
Bias:
Power supply: +12V
Package Dimensions:
30x50x17.5
Output Saturation Power (dBm):
23.00
Connectors:
2.4 mm Female
Frequency Start (GHz)
33,00
Frequency Stop (GHz)
45,00
Psat (dBm)
23
Gain (dB)
30,00
Gain flatness (dB)
±5
NF (dB)
-
VSWR IN
5.0:1
VSWR OUT
2.0:1
Power supply (V)
12 ±4
Current (mA)
292
Power consumption (W)
3.5
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
10
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

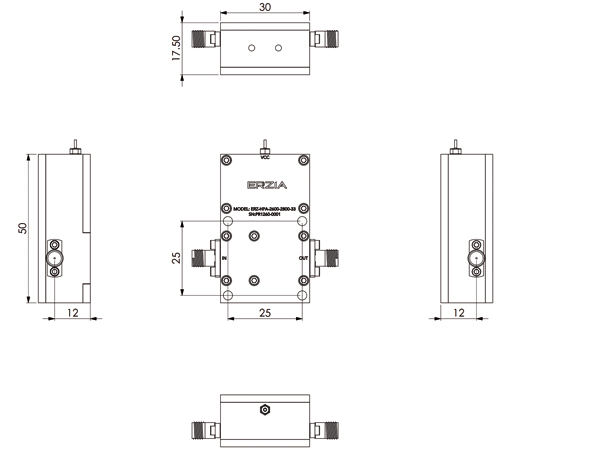

Outline Drawing:
Ordering Information:
