ERZ-HPA-3000-4200-26

Ka Band Power Amplifier

Description:

The ERZ-HPA-3000-4200-26 is a Ka Band Amplifier providing up to 26 dBm and a gain of 41 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
30,00 to 42,00
Psat (dBm):
26
Small Signal Gain (dB):
41,00
Noise Figure (dB):
4
Bias:
12 VDC
Package Dimensions:
30x50x17.5
Output Saturation Power (dBm):
26.00
Connectors:
2.4 mm Female
Frequency Start (GHz)
30,00
Frequency Stop (GHz)
42,00
Psat (dBm)
26
Gain (dB)
41,00
Gain flatness (dB)
±2
NF (dB)
4
VSWR IN
3.5:1
VSWR OUT
2.0:1
Power supply (V)
12 ±4
Current (mA)
292
Power consumption (W)
3.5
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
10
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

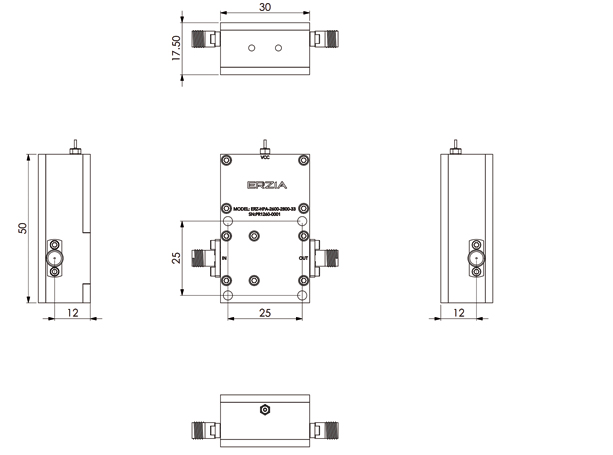

Outline Drawing:
