ERZ-HPA-2300-2800-21

Ka Band Power Amplifier

Description:

The ERZ-HPA-2300-2800-21 is a Ka Band Amplifier providing up to 21 dBm at saturation and a gain over 16 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
23,00 to 28,00
Psat (dBm):
21
Small Signal Gain (dB):
16,00
Bias:
Power supply: +12 V, DC Current: 163 mA
Package Dimensions:
30x30x17,5 mm
Output Saturation Power (dBm):
21.00
Connectors:
2.92 mm Female
Frequency Start (GHz)
23,00
Frequency Stop (GHz)
28,00
Psat (dBm)
21
Gain (dB)
16,00
Gain flatness (dB)
±0,5
NF (dB)
-
VSWR IN
2.1:1
VSWR OUT
2.4:1
Power supply (V)
12 ±4
Current (mA)
163
Power consumption (W)
2
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
15
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-45 to 85
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

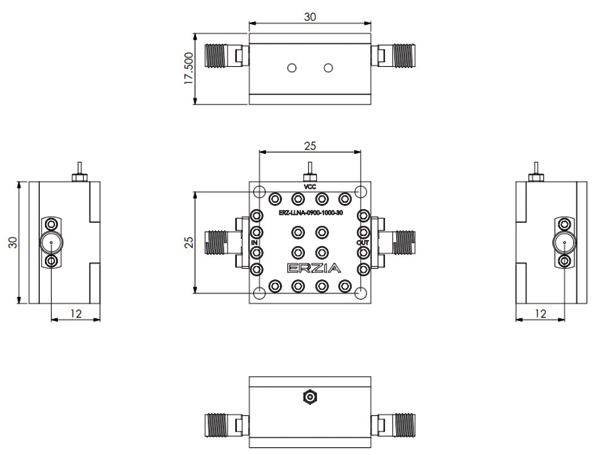

Outline Drawing:
Ordering Information:
