ERZ-HPA-3100-3500-33

Ka Band Power Amplifier

Description:

The ERZ-HPA-3100-3500-33 is a Ka Band Amplifier providing up to 32.5 dBm at saturation and a gain of 17 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
31,00 to 35,00
Psat (dBm):
32.5
Small Signal Gain (dB):
18,00
Bias:
Power supply: +12 ±4 V, DC Current: 850 mA
Package Dimensions:
30x30x17,5 mm
Output Saturation Power (dBm):
32.50
Connectors:
2.92 mm Female
Frequency Start (GHz)
31,00
Frequency Stop (GHz)
35,00
Psat (dBm)
32.5
Gain (dB)
17,00
Gain flatness (dB)
±1
NF (dB)
-
VSWR IN
2.5:1
VSWR OUT
2.0:1
Power supply (V)
12 ±4
Current (mA)
920
Power consumption (W)
11
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
27
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

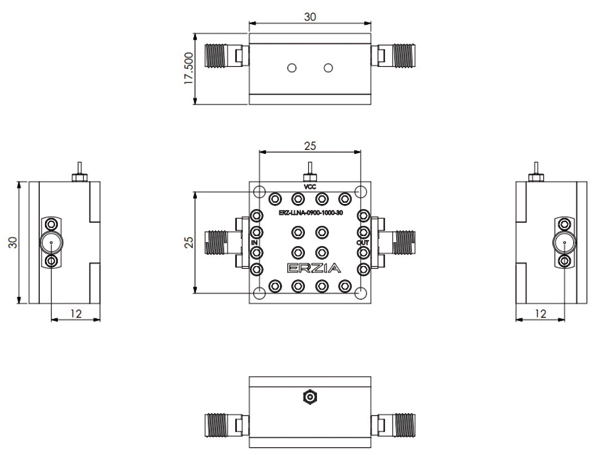

Outline Drawing:
Ordering Information:
