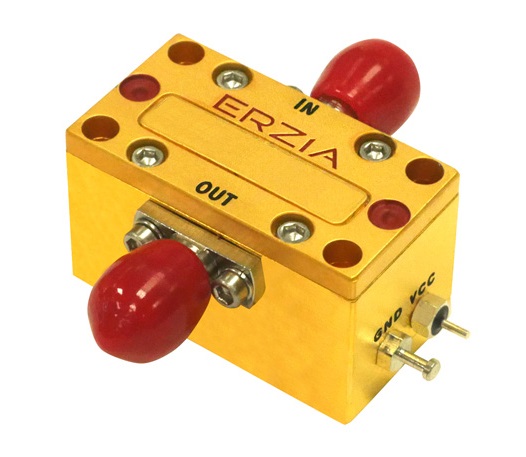

ERZ-HPA-3000-4200-14

Ka Band Power Amplifier

Description:

The ERZ-HPA-3000-4200-14 is a Ka Band Amplifier providing up to 14 dBm and a gain of 21 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
30,00 to 42,00
Psat (dBm):
14
Small Signal Gain (dB):
21,00
Noise Figure (dB):
-
Bias:
Power supply: +12 ±4 V, DC Current: 50 mA
Package Dimensions:
16x30x17,5 mm
Frequency Start (GHz)
30,00
Frequency Stop (GHz)
42,00
Psat (dBm)
14
Gain (dB)
21,00
Gain flatness (dB)
±0,5
NF (dB)
-
VSWR IN
5.0:1
VSWR OUT
2.0:1
Power supply (V)
12 ±4
Current (mA)
40
Power consumption (W)
0.5
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
12
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
