ERZ-HPA-4000-4500-28

Q Band Power Amplifier

Description:

The ERZ-HPA-4000-4500-28 is a Q Band Amplifier providing up to 28 dBm and a gain of 10 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
40,00 to 45,00
Psat (dBm):
28
Small Signal Gain (dB):
10,00
Noise Figure (dB):
-
Bias:
Power supply: +12 ±4 V, DC Current: 500 mA
Package Dimensions:
30x30x17,5 mm
Frequency Start (GHz)
40,00
Frequency Stop (GHz)
45,00
Psat (dBm)
28
Gain (dB)
10,00
Gain flatness (dB)
±0,5
NF (dB)
-
VSWR IN
2.5:1
VSWR OUT
2.5:1
Power supply (V)
12 ±4
Current (mA)
500
Power consumption (W)
6
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
27
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

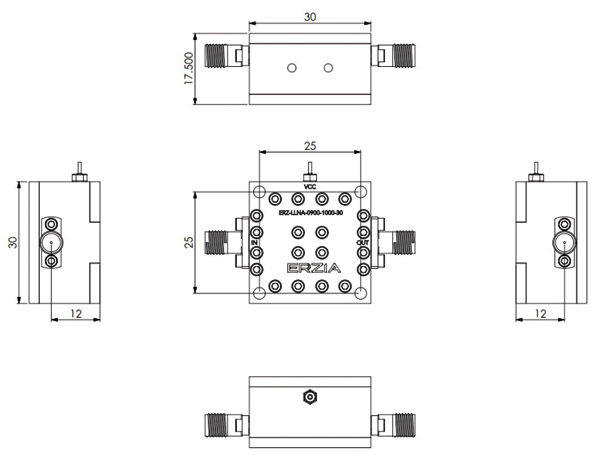

Outline Drawing:
Ordering Information:
